Swap Cabinet
Slot geometry, charging power, safety and environmental protection.

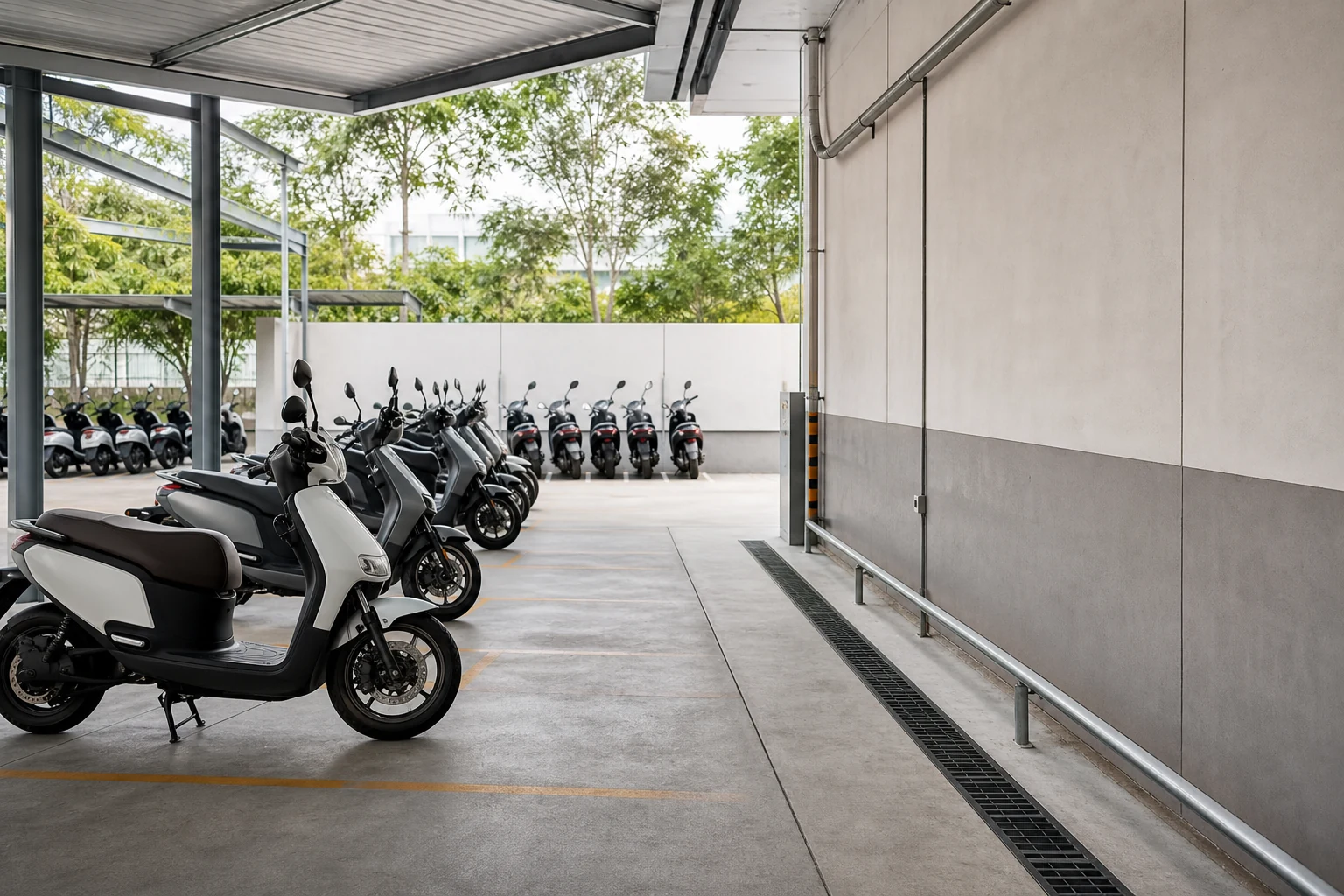

FLEET APPLICATIONTWO & THREE-WHEELER EV ENERGY
A battery swap system starts with compatibility—not just a cabinet.
Cabinet, battery, BMS communication and software must be configured as one technical system for the target vehicle and market.
12-SLOT CABINET
BATTERY CONFIGURATIONONE SYSTEM · FOUR LAYERS
The website explains the complete compatibility chain

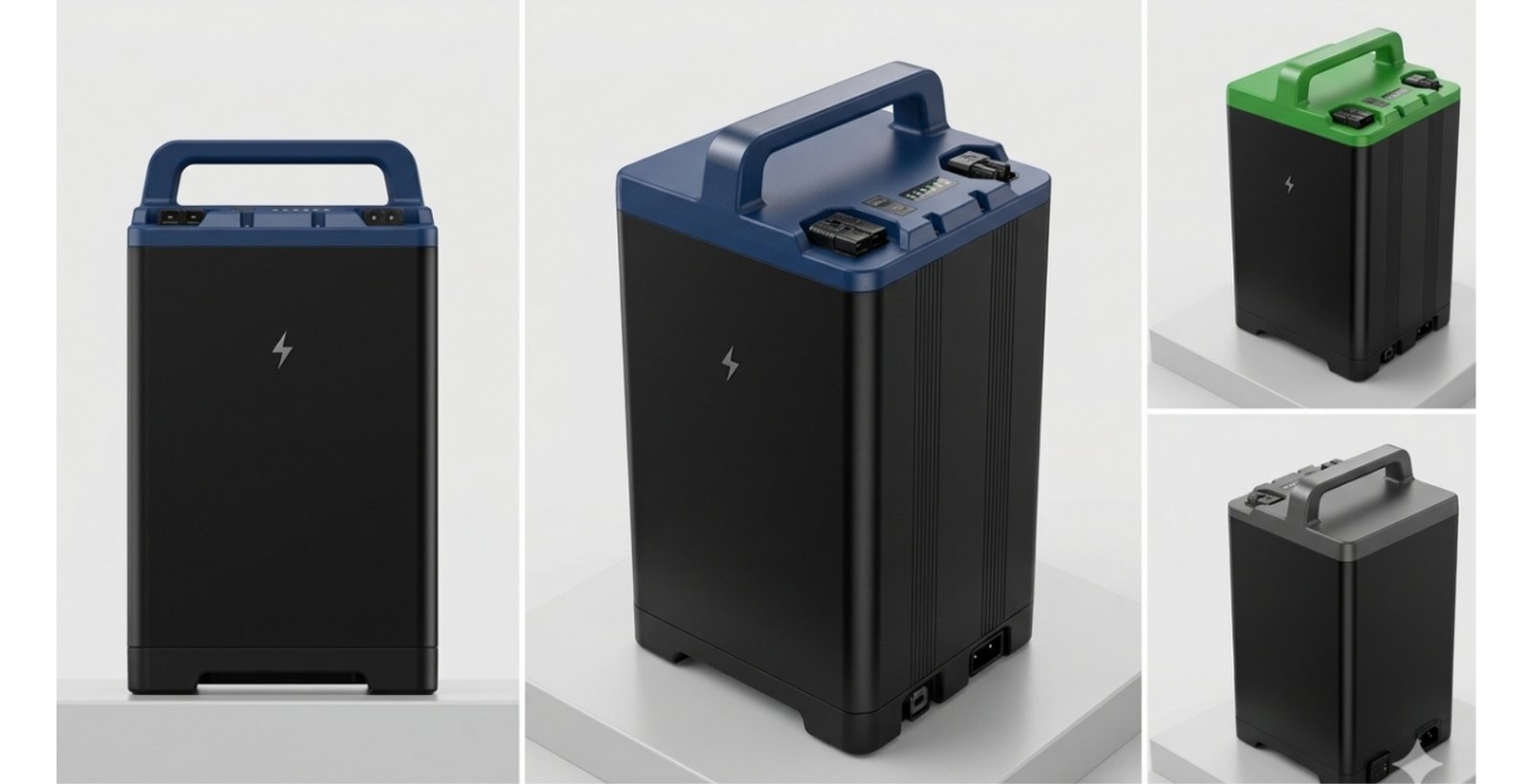

Swappable Battery
Voltage, capacity, cells, enclosure, connector and mechanical fit.
BMS & IoT
Battery protocol, cabinet communication, device data and remote control.
Apps & Platform
User flow, device monitoring, orders and operation-side permissions.
Verified source parametersREFERENCE PRODUCT

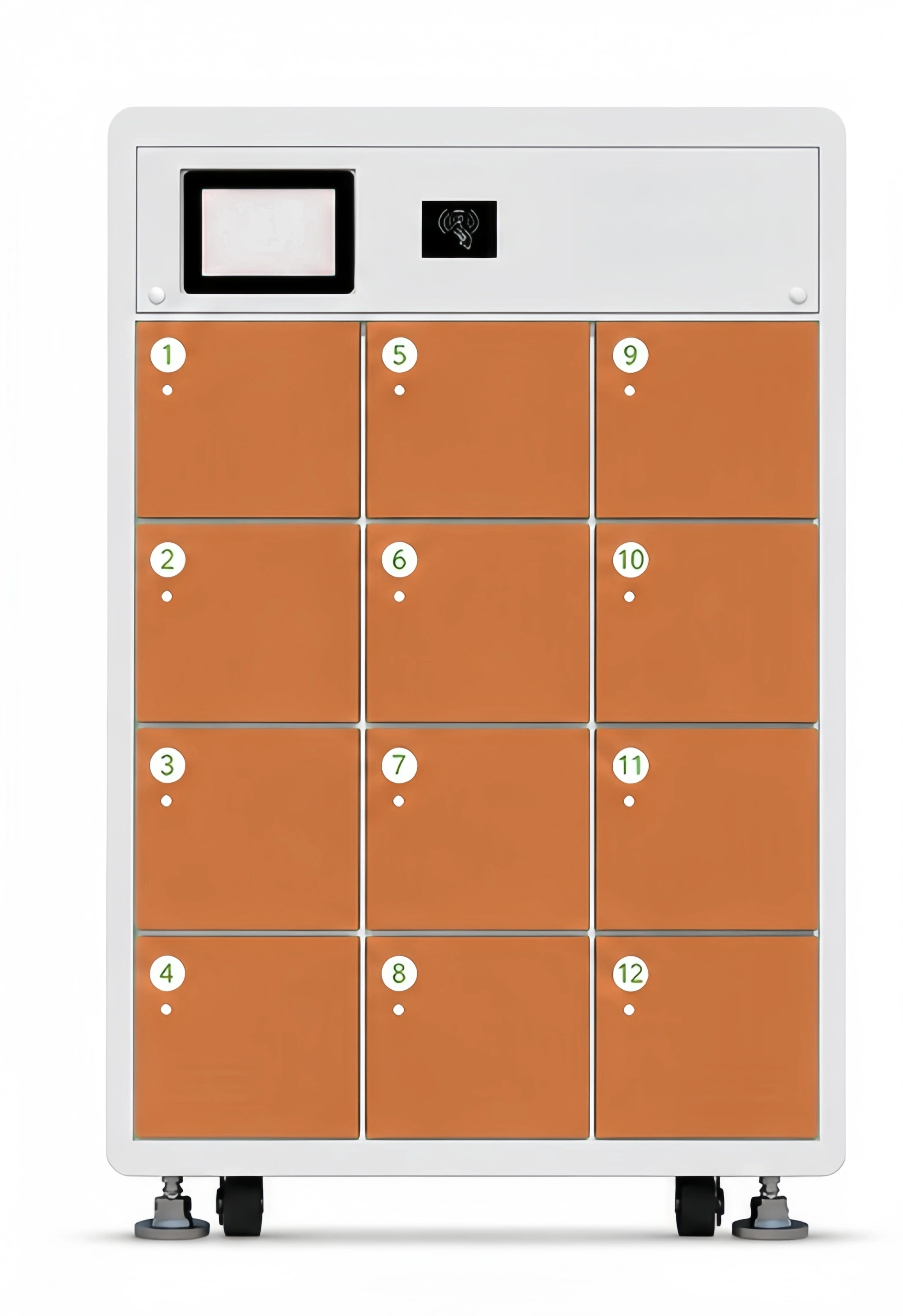

12-Slot Battery Swap Cabinet
This is the strongest currently documented product and can become the first complete model page after commercial details are confirmed.
Capacity12 slots
InputAC 220V / 50Hz
Total power9kW
Battery support48V / 60V / 72V lithium
CommunicationRS485 + 4G
ProtectionIP54
Operating temperature-25°C to +60°C
Remote maintenanceMain controller OTA
BATTERY CONFIGURATION
Voltage is only the first line of the battery specification.
A quotable battery page must show the complete compatibility matrix—not only 48V, 60V or 72V.
- Voltage and capacity
- Cell chemistry and cycle-life target
- Dimensions, connector and locking interface
- BMS functions and communication protocol
- Cabinet and vehicle compatibility
- Certification and transport documentation
48V60V72V
Final models and parameters pending supplier datasheets.COMPATIBILITY GATE
Every inquiry must pass these checks before quotation
01
Vehicle
Voltage · space · connector
02
Battery
Cells · BMS · enclosure
03
Cabinet
Slot · charger · protocol
04
Platform
Device · order · remote data
Project enquiry
Send RequirementsSend the battery and vehicle interface first.
We will verify cabinet, charger, protocol and mechanical compatibility before recommending a configuration.
