Products for Commercial EV Energy Deployment
Configurable hardware for battery swapping, charging, and electric mobility projects.

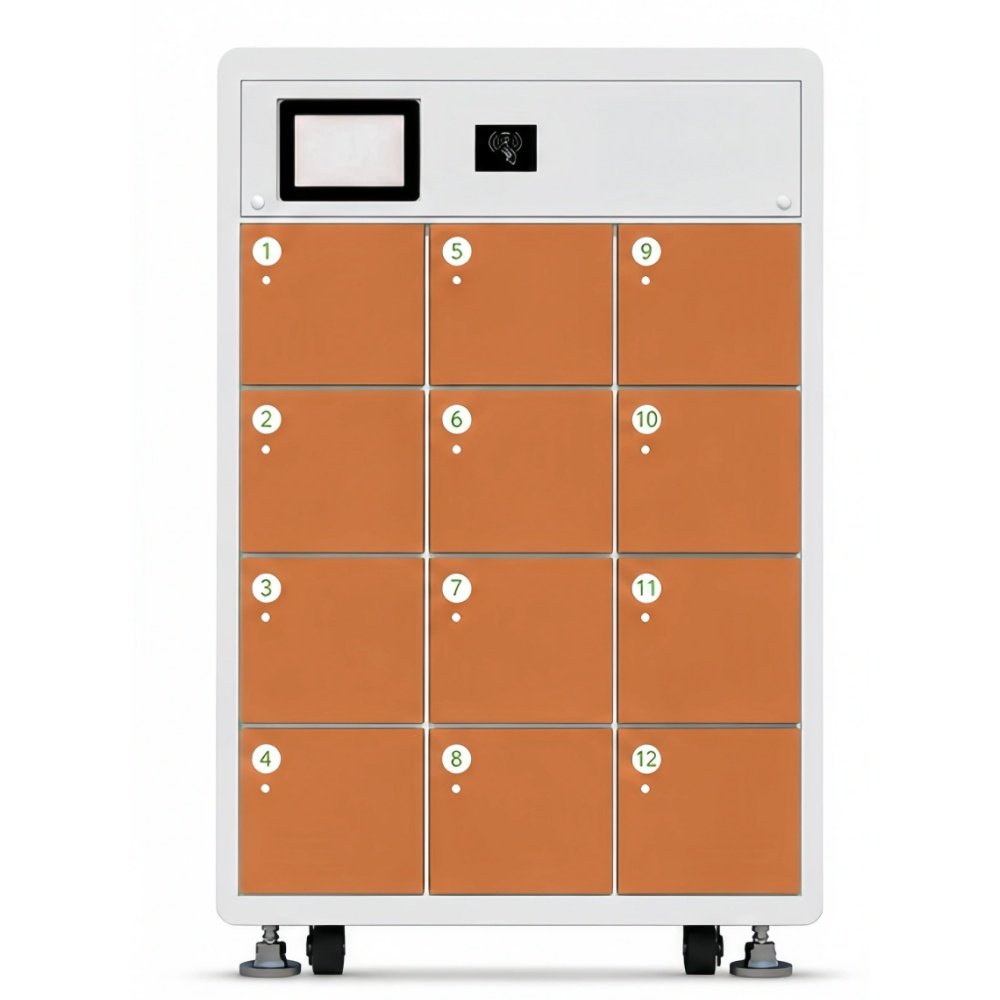

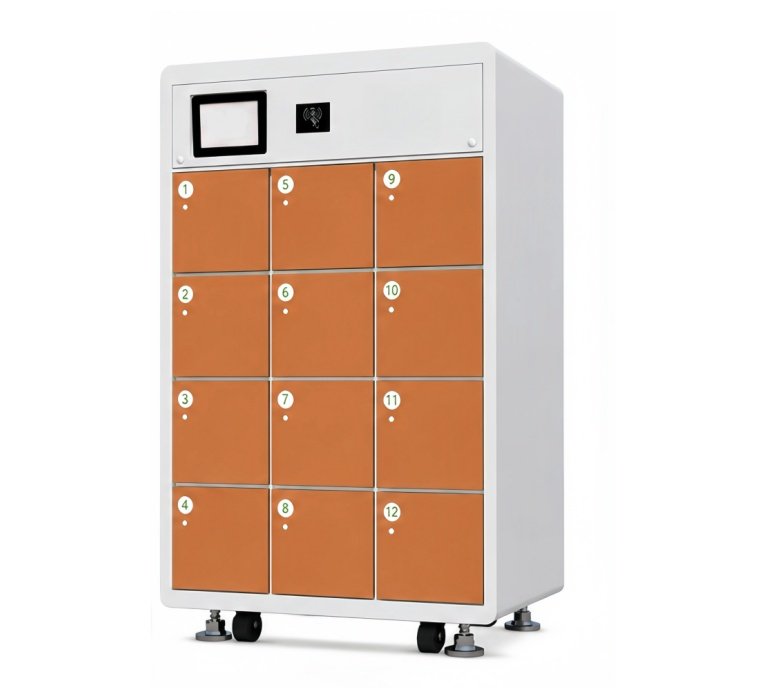

12-Slot Battery Swap Cabinet
Designed for commercial battery swapping deployment with integrated charging, communication, and multi-layer safety protection.
- 12-slot configuration for high-throughput operation
- Supports 48V / 60V / 72V lithium battery charging
- RS485 + 4G communication for remote monitoring
- IP54 protection — dust, humidity, and rain splash resistant
- OTA-capable controller for remote firmware updates
- Multi-layer safety: smoke, water ingress, temperature, aerosol fire suppression
Technical Specifications
| Specification | Details |
| Capacity | 12 slots |
| Cabinet Size | 1652 × 1111 × 600 mm |
| With Canopy | 1914 × 1111 × 600 mm |
| Input Power | AC 220V 50Hz |
| Total Power | 9kW |
| Per-Slot Charging Power | 750W |
| Battery Support | 48V / 60V / 72V lithium |
| Output Voltage | DC 40–90V |
| Communication | RS485 + 4G |
| Protection Rating | IP54 |
| Operating Temperature | -25°C to +60°C |
| Safety Features | Temperature, smoke, water ingress detection; aerosol fire suppression |
| Remote Maintenance | Supports OTA upgrade |
More Products

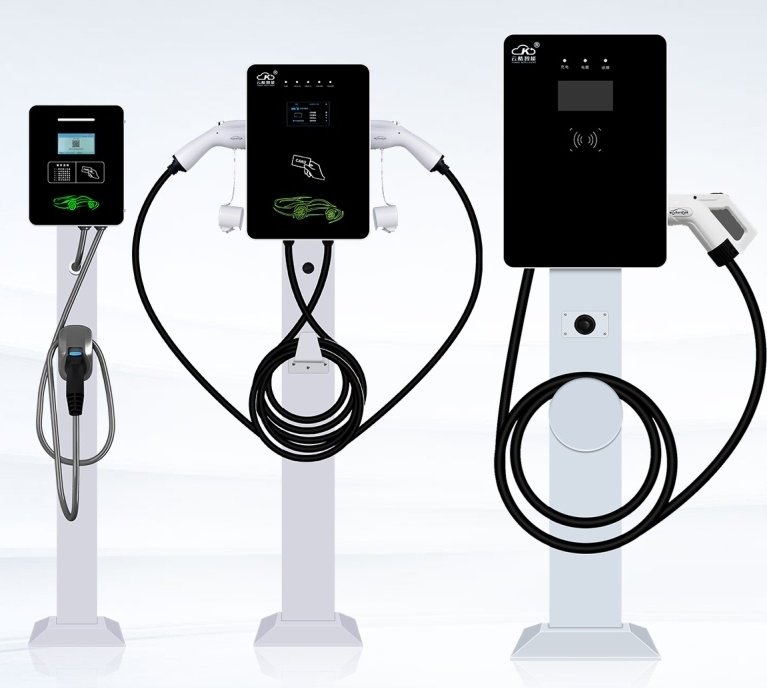

Charging Station
Charging station configurations available for commercial deployment in parking areas, project sites, community scenarios, and public energy points. Product selection can be adjusted according to charging mode, power requirements, and operating model.
Charging Cabinet
Centralized charging cabinet solutions for scenarios requiring operator control, user access management, and charging visibility. Supports structured charging operation and practical commercial use.

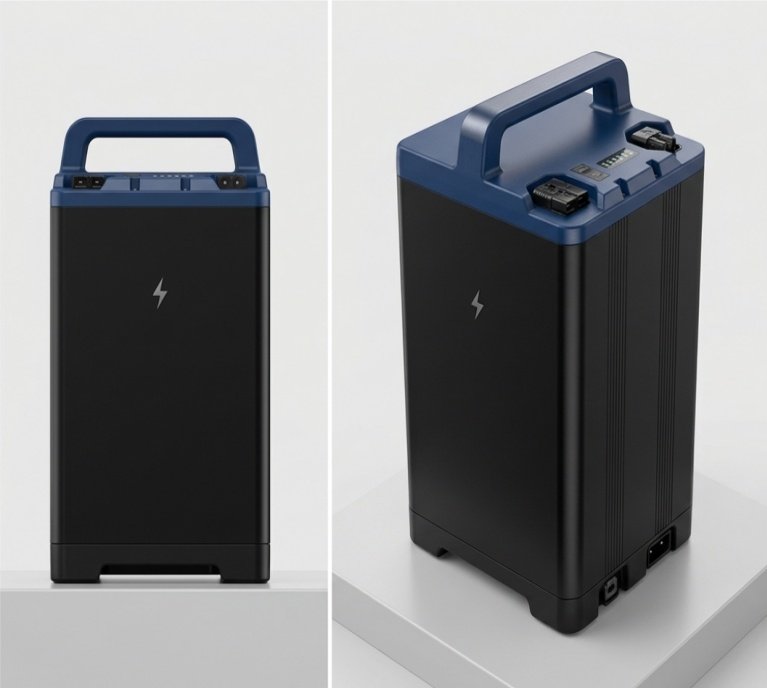

Swappable Battery Pack
Battery packs designed for high-frequency commercial swap operation. Built with top-tier cells for daily cycling durability. Integrated smart BMS with 4G communication and GPS tracking.
